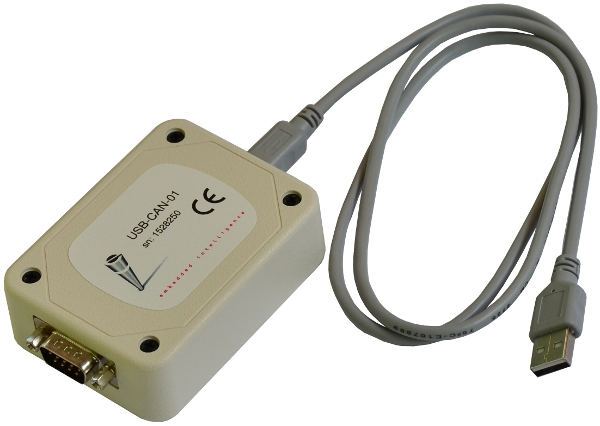

USB-CAN-01 network interface card

• Single channel, galvanically isolated CAN interface.
• USB 2.0 high speed (480 Mbit/sec) interface.
• Integrated 100MHz, 32-bit processor
• Supports CAN bit rates up to 1 Mb/sec.
• Message transmit and receive time stamping with 1 microsecond resolution.
• Driver support for Windows and Linux
• CANview bus monitoring software including CANopen message decoding provided for Windows and Linux.
• Agency approvals: CE, FCC, RoHS

$200 - in stock

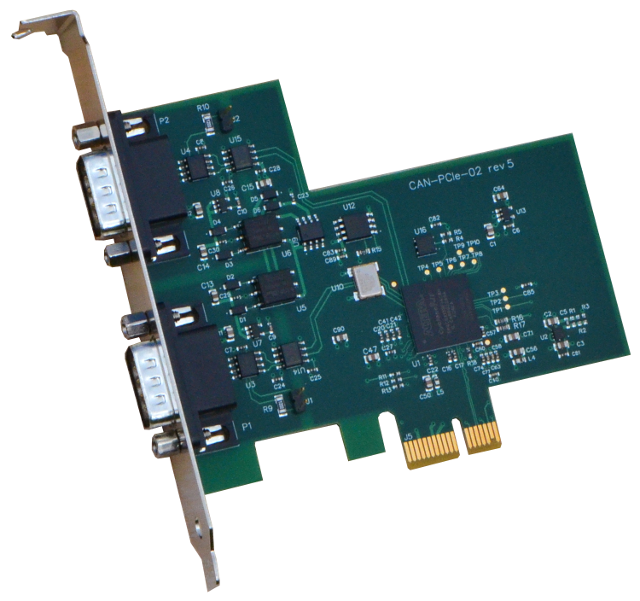

PCIe-CAN-02 network interface card

Cost effective, high performance CAN bus interface

• Dual channel, galvanically isolated CAN interface.
• PCI Express x1 interface.
• Integrated 100MHz, 32-bit processor
• Supports CAN bit rates up to 1 Mb/sec.
• Large on-board message buffers (74 receive, 10 transmit message per channel).
• Message transmit and receive time stamping with 1 microsecond resolution.
• On-board jumper selectable termination resistors.
• Driver support for Windows and Linux
• CANview bus monitoring software including CANopen message decoding provided for Windows and Linux.
• Agency approvals: CE, FCC, RoHS

$250 - in stock

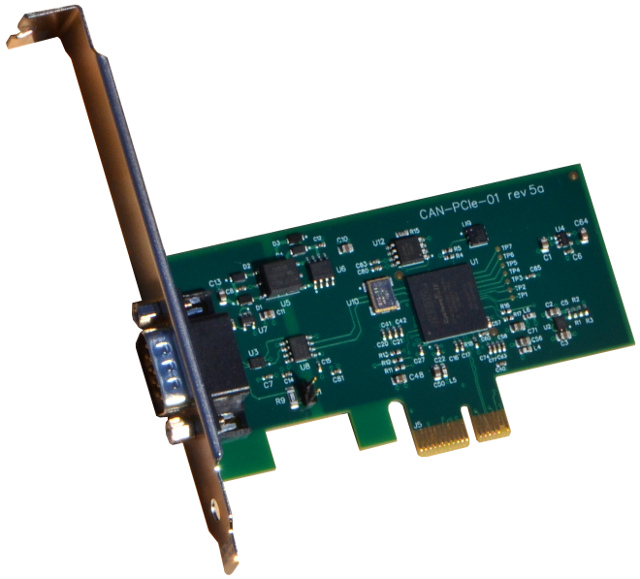

PCIe-CAN-01 network interface card

• Single channel, galvanically isolated CAN interface.
• PCI Express x1 interface.
• Integrated 100MHz, 32-bit processor
• Supports CAN bit rates up to 1 Mb/sec.
• Large on-board message buffers (164 receive, 10 transmit message).
• Message transmit and receive time stamping with 1 microsecond resolution.
• On-board jumper selectable termination resistor.
• Driver support for Windows and Linux
• CANview bus monitoring software including CANopen message decoding provided for Windows and Linux.
• Agency approvals: CE, FCC, RoHS

$225 - in stock
